How Curiosity Hijacked Me: Cracking My Router's Hidden Token

A Full Reverse Engineering Walkthrough of Dynamic Login Token and SHA-256 Authentication

Posted
Preview Image
By phruit
11 min read
How Curiosity Hijacked Me: Cracking My Router's Hidden Token

🌸 Part 1 - Opening and Story Start

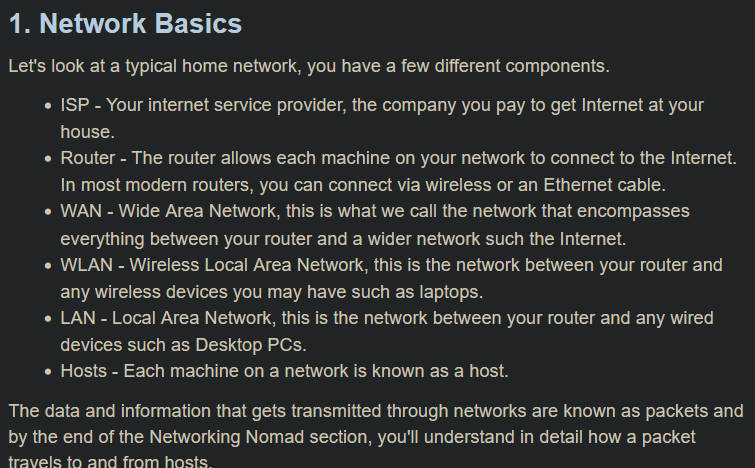

So originally, I was planning to sit down quietly and study TCP/IP protocol theory seriously.

networkBasics

But then… curiosity dragged me away.

I tried to find the WAN and WLAN Ports on my router.
This tiny hands-on move totally distracted me from the boring theory and pulled me into something dirty and wild. 🐾
One second I was a diligent student, the next I was hacking like a cyberpunk gremlin. 🛜✨

Before we dive deep, let’s first figure out what these words WAN, LAN, and WLAN actually mean, and know a bit about Do Routers Use HTTP for Login.

😇 What are WAN, LAN, and WLAN?

Imagine your router at home like a tiny, magical post office.
It connects you (and all your devices) to the whole big Internet world 🌍.

Inside and around this magical post office:

✨ WAN - Wide Area Network

  • WAN is the giant highway 🚚 outside your house (your router).
  • It connects your home to the Internet itself.
  • WAN Port on Router? YES. That’s usually where your Internet Service Provider (ISP) cable plugs in!

👉 Without WAN, your house would be totally cut off - no Netflix, no hacking tutorials, no digital adventures. 😭

✨ LAN - Local Area Network

  • LAN is everything inside your house. 🏡
  • It’s like private roads connecting your devices - your PC, your laptop, your tablet, your fridge even (if it’s smart enough).
  • LAN Ports on Router? YES - those ports labeled LAN1, LAN2, etc.

👉 LAN is like family members talking happily inside the house, no need to go out onto the highway.

✨ WLAN - Wireless Local Area Network

  • WLAN is LAN without cables - wireless 🛜✨.
  • All your WiFi devices connect to the router using invisible radio waves.

👉 WLAN is like your family members shouting happily across rooms using walkie-talkies instead of cables. 📣📡

Quick Recap 📦

TermWhat It IsWhere You Find It
WANYour router’s connection to the InternetWAN port (often blue)
LANWired connections inside your homeLAN1, LAN2 ports
WLANWireless connections inside your homeWiFi broadcast

🛜 In General: Do Routers Use HTTP for Login?

✅ Most default to HTTP, because:

  • Easier for grandma to connect and not get SSL warnings 😂
  • Certificates (for HTTPS) are messy to generate and maintain
  • ISPs (especially in China) don’t want to pay for SSL certs for each router they ship
  • Local network assumed to be “safe” (cough cough bullshit)
  • They just hash or lightly obfuscate the password inside the page

Example:

  • http://192.168.1.1
  • http://192.168.0.1
  • http://192.168.2.1

2. Business/Enterprise Routers (Cisco, Ubiquiti, Fortinet…)

✅ Professional routers often enforce HTTPS by default.
✅ Their login page is something like:

  • https://192.168.1.1
  • or they force you to upload your own SSL cert.

They know that even inside a corporate LAN, attackers can sniff.
HTTPS everywhere becomes essential.

3. Modern Premium Consumer Routers (Asus, Synology, Unifi…)

✅ Newer models force HTTPS too (even self-signed).

When you access them:

  • Your browser will give you a “Warning: Not Trusted” page (because SSL cert is self-signed)
  • You have to click “Proceed anyway” to enter.

But at least the channel is fully encrypted 🔒!

🖤 So the ugly truth is:

Router TypeDefault Login ModeNotes
Cheap ISP home routersHTTPMaybe password hashed, but sniffable
Enterprise routersHTTPSStrong encryption, professional-grade
New expensive consumer routersHTTPS (self-signed)Still better, but warnings appear

Part 2 - Discovery: From Bored to Completely Obsessed

After understanding WAN, LAN, and WLAN basics,
I decided to log into my router to explore more settings.

🛜 How I Accessed My Router

  1. I connected to the router (via WiFi).
  2. Opened my browser.
  3. Typed http://192.168.2.1/ into the address bar.

🎯 Boom - a login page popped up, asking for:

  • Username (mine was admin)
  • Password (on my sticker, it was admin)

🍬 A Little Unexpected Curiosity…

Once I logged in, I opened the browser DevTools (F12) to snoop around…
And that’s where I noticed something strange:

In the Network tab, when the login request (POST) was sent,
the “Password” field wasn’t my plain password.

Instead, it was a weird, long string like:

1

5fd0828219e305d95e21e4925c42faa32970e3702bcf4a23863133e5f7574b39

👀 My password admin obviously didn’t look like that.
Something was happening behind the scenes!

🌸 First Guess: Maybe It’s Hashed?

I guessed:

  • Maybe the browser hashed the password before sending it?
  • Maybe it used SHA-256, MD5, or even HMAC?

So, I tested immediately:

  1. Went to an online SHA-256 tool.
  2. Hashed admin.
  3. Got:
    1

    6f021f1c9d1cff7fc1f9fa533025e47ee6b2360bdde03c865e11b4c60f9982c8

🚨 But it still didn’t match the login POST password!

Something trickier was happening…
and that made my curiosity catch fire even harder.

Part 3 - Exploring JavaScript: Hunting the Encryption

After realizing my password was somehow being transformed before it was sent…
I knew it was time to dig deeper. 🥷

Where do browsers hide their dirty tricks?
👉 In JavaScript.

🛜 My Plan: Tear Open the Source Code

  1. I stayed on the router login page.
  2. Opened DevTools → switched to the Sources tab.
  3. Hit Ctrl+Shift+F to search across all scripts.

I searched for keywords like:

  • password
  • hash
  • encrypt
  • login

I knew somewhere, buried in the scripts,
there would be a function that touched my password before sending it.

🍬 What I Found: The Critical Function

Hidden inside the main index JavaScript file,

I found this function:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

function g_loginToken(xml)
{
  var xmlObj = $(xml).text();
  var Password = "";
  var IsAutoShowPass = $("#IsAutoShowPass").val();
  var frm_Password = $("#Frm_Password").val();
  if (1 == IsAutoShowPass)
  {
    if ("						" == frm_Password)
    {
      Password = $("#RealPassword").val();
    }
    else
    {
      Password = frm_Password;
    }
  }
  else
  {
    Password = frm_Password;
  }
  var SHA256Password = sha256(Password + xmlObj);
  var LoginFormObj = new webSubmitForm();
  LoginFormObj.addParameter("Username", $("#Frm_Username").val());
  LoginFormObj.addParameter("Password", SHA256Password);
  LoginFormObj.addParameter("action", "login");
  LoginFormObj.addParameter("_sessionTOKEN", "820326693287295952528132");
  LoginFormObj.Form.submit();
  Password = undefined;
  SHA256Password = undefined;
}

👀 There it was.

The secret exposed itself:

1

var SHA256Password = sha256(Password + xmlObj);

🛜 My Immediate Thoughts

“Wait… so it’s NOT just hashing the password…”
“It’s combining the password with some other thing… this mysterious xmlObj!”

Password ➕ xmlObj ➔ SHA256 ➔ Final password sent.

No colons, no spaces, no newlines - just directly glued together.

🌙 But What the Hell is xmlObj?

The code showed:

1

var xmlObj = $(xml).text();

Meaning:

  • xmlObj came from somewhere outside - some dynamic input.
  • Probably an AJAX server response - like a hidden login token sent quietly behind the scenes.

Part 4 - Finding the True XML Token in the Network

At this point, I knew the password hashing wasn’t magic.
It was password + xmlObj, glued together, and then SHA-256 hashed.

But…
where the hell was this xmlObj actually coming from?

Time to hack deeper. 🥷

🛜 My Plan: Catch the Token in Live Traffic

  1. Opened DevTools → Network tab.
  2. Reloaded the router login page.
  3. Checked “Preserve Log” to make sure requests stayed visible after reload.
  4. Set filter to XHR (only AJAX requests).

👉 My goal:
Catch every little server whisper that the page pulls in after loading.

🍬 What I Found

I didn’t find “loginToken” directly by sight…
So I hit Ctrl+F inside the Network panel - searched for:

loginToken

And then…
✨ I found a request to:

1

/function_module/login_module/login_page/logintoken_lua.lua

🌸 The Response Revealed:

Opening its Response tab, I saw:

1

<ajax_response_xml_root>63794643</ajax_response_xml_root>

👀 There it was.
The real dynamic token.

🛜 Final Understanding:

So the login process was:

  1. Router sends a dynamic small XML token (63794643) secretly on page load.
  2. Browser JavaScript (g_loginToken(xml)) catches it.
  3. Password + XML token → concatenated without any separator.
  4. Entire string SHA-256 hashed.
  5. That hash is sent in the login POST.

🌙 I Rebuilt the Final Hash Manually:

  • My password: admin
  • The live token: 63794643

Concatenated:

1

admin63794643

Hashed with SHA-256 ➔
Result:

1

5fd0828219e305d95e21e4925c42faa32970e3702bcf4a23863133e5f7574b39

And when I compared it to the POST request password field?
🎯 It matched perfectly.

Part 5 - Final Checkpoints: Untangling Session Tokens and XML Token

At this point, I had fully cracked how the password hash was generated.

But…
another tiny mess was sitting in front of me -
the _sessionTOKEN.

🛜 What Confused Me

I noticed that:

  • In the page source, there were hidden <input> fields like:

    1
2

    <input type="hidden" name="_sessionTOKEN" id="_sessionTOKEN" value="841955577041466843486997"/>
<input type="hidden" name="_vueSessionTOKEN" id="_vueSessionTOKEN" value="841955577041466843486997"/>

  • And in the JavaScript, there was also:

    1

    var g_sessionTmpToken = '841955577041466843486997';

These tokens looked similar but slightly suspicious.

🌸 Another Layer of Dynamic Tokens?

When I watched the Network tab carefully,
I noticed:

  • Every time I reloaded the page, the _sessionTOKEN value changed.
  • But sometimes, during login POST, the token inside the request body wasn’t exactly matching the page’s token when the page first loaded.

😵 Was there some AJAX refreshing the token again during login?

🛜 So What I Understood:

  • The xml token I captured (63794643) is only used for password hashing.
  • The _sessionTOKEN is used for server-side session validation when submitting the login.

They are different roles:

TokenPurpose
XML Token (from logintoken_lua.lua)Used to build the hashed password
_sessionTOKEN (from hidden fields)Sent separately for server validation

🌙 What Really Happens During Login

  1. Browser loads login page.
  2. Receives XML token via AJAX (logintoken_lua.lua).
  3. JavaScript concatenates password + XML token, hashes it via SHA-256.
  4. Browser fills in:
    • Username
    • Password (hashed version)
    • _sessionTOKEN (latest one)
    • action = login
  5. Sends a POST request.

If any part is wrong - wrong hash, wrong session token - router login fails.

✅
If everything matches - login success.

🍬 My Final Confirmation

When I manually re-built:

1

"admin" + "63794643"

→ SHA256 → 5fd0828219e305d95e21e4925c42faa32970e3702bcf4a23863133e5f7574b39

Then sent along with the correct _sessionTOKEN captured from hidden input field…

🎯 Router accepted the login.

I didn’t even need the real login page anymore if I scripted it myself. 😈

Part 6 - Summary: How to Fully Crack a Router’s Login Process

If you ever find yourself facing a router login page using HTTP (not HTTPS),
and notice that your password field in the POST request doesn’t match your raw password,
here’s how you can fully reverse-engineer the process.

📋 Step 1 - Connect and Open DevTools

  • Connect to the router (via WiFi or Ethernet).
  • Open your browser and visit the router login page (e.g., http://192.168.1.1).
  • Open Developer Tools (F12 or Ctrl+Shift+I).
  • Switch to the Network tab.
  • Enable “Preserve Log” to keep network traffic even after reload.

🍬 Tiny Tips:

Can’t get in? Type ipconfig in your Windows CMD (or ifconfig in Linux/Mac Terminal) - find your Default Gateway - that’s your router’s true IP address!

📋 Step 2 - Filter and Find Token Requests

  • Set the Network filter to “XHR” (AJAX requests).
  • Reload the page.
  • Search (Ctrl+F) for keywords like token, loginToken, or similar.
  • Look for any small request that loads a dynamic value from the server.

📋 Step 3 - Capture the Live XML Token

  • Open the Response tab of suspicious requests.
  • Find XML like:
    1

    <ajax_response_xml_root>63794643</ajax_response_xml_root>
  • Note the token value (63794643 in this example).

📋 Step 4 - Check the JavaScript Source

  • Switch to the Sources tab.
  • Search (Ctrl+Shift+F) for keywords: password, hash, sha256, encrypt.
  • Find the login-related function (often something like g_loginToken(xml)).
  • Analyze how the password is processed.

Common pattern:

1

var SHA256Password = sha256(Password + xmlObj);

Meaning:

  • Password + Token (concatenated directly)
  • Then SHA-256 hashed.

📋 Step 5 - Rebuild the Hashed Password

  • Concatenate your password and the captured XML token with no separator (no spaces, no colons).
    1

    admin63794643
  • Hash the result using SHA-256.

Example output:

1

5fd0828219e305d95e21e4925c42faa32970e3702bcf4a23863133e5f7574b39
  • Confirm that this hash matches the Password field you saw in the POST login request.

📋 Step 6 - Understand the _sessionTOKEN Field

  • Besides the hashed password, your router likely requires a _sessionTOKEN.
  • This is usually loaded as a hidden <input> field inside the login page.
  • Make sure you send the correct, latest _sessionTOKEN alongside your username and hashed password.

📋 Step 7 - Craft Your Own Manual Login (Optional)

Now that you know the process,
you can:

  • Auto-fetch the token.
  • Hash your password manually.
  • Submit a crafted POST request without using the original web UI.

🌟 Final Thoughts

  • Most consumer routers use simple HTTP login mechanisms with token-based password hashing.
  • By understanding the JavaScript and the network traffic,
    you can fully reverse-engineer the authentication logic.
  • Be cautious:
    hacking your own hardware is a beautiful skill -
    but always respect the legal boundaries when targeting anything beyond your own devices.

😇 Reverse Engineering is A Pure Magic!

💖 Support me with crypto or PayPal! 💘

💵 USDT (TRC20):
TJCANuMYSdgLKRKnpCtscXrS5NgDbBAvF9

🟠 Bitcoin (BTC):
bc1qrc9vhrrhnc9v9s9q9rjn24aj608j44p5hzsxft

Or support me on Ko-fi:

Support me on Ko-fi

Any amount helps me continue creating content 💬💻

🤖 tech, 🔒 Web Security
🧪 Reverse Engineering 📜 JavaScript 🛜 Router Hacking 🔒 Web Security 💻 Token-Based Authentication 🐾 Personal Journey
This post is licensed under CC BY 4.0 by the author.
